The GPU & NPU

One chef vs ten thousand prep cooks

Two genuinely different design philosophies, sitting an inch apart on the same motherboard:

Each GPU "core" (NVIDIA calls them CUDA cores; AMD calls them stream processors; Apple calls them shader cores) is dramatically less capable than a CPU core. It runs at half the clock speed. It hates conditional branches. It can barely access memory on its own. But there are ten thousand of them, and they're glued together such that one instruction can be issued to a thousand of them at once. Same Instruction, Multiple Data — the SIMD idea from last week, taken to a maximalist extreme.

The CPU is a single chef who can roast a chicken, debone a fish, and lobby Congress. The GPU is the entire prep brigade chopping ten thousand identical cubes of carrot. You absolutely want both.

Where GPUs came from — and why they were waiting for AI

Pixels, originally. In the late 1990s, gamers wanted 3D graphics — and 3D graphics is, almost embarrassingly, the same calculation done over and over for every pixel on the screen. Multiply this position vector by that camera matrix, light it from this direction, sample that texture, write the result. Two million pixels at sixty frames per second is a hundred-and-twenty million identical calculations per second, all independent of each other.

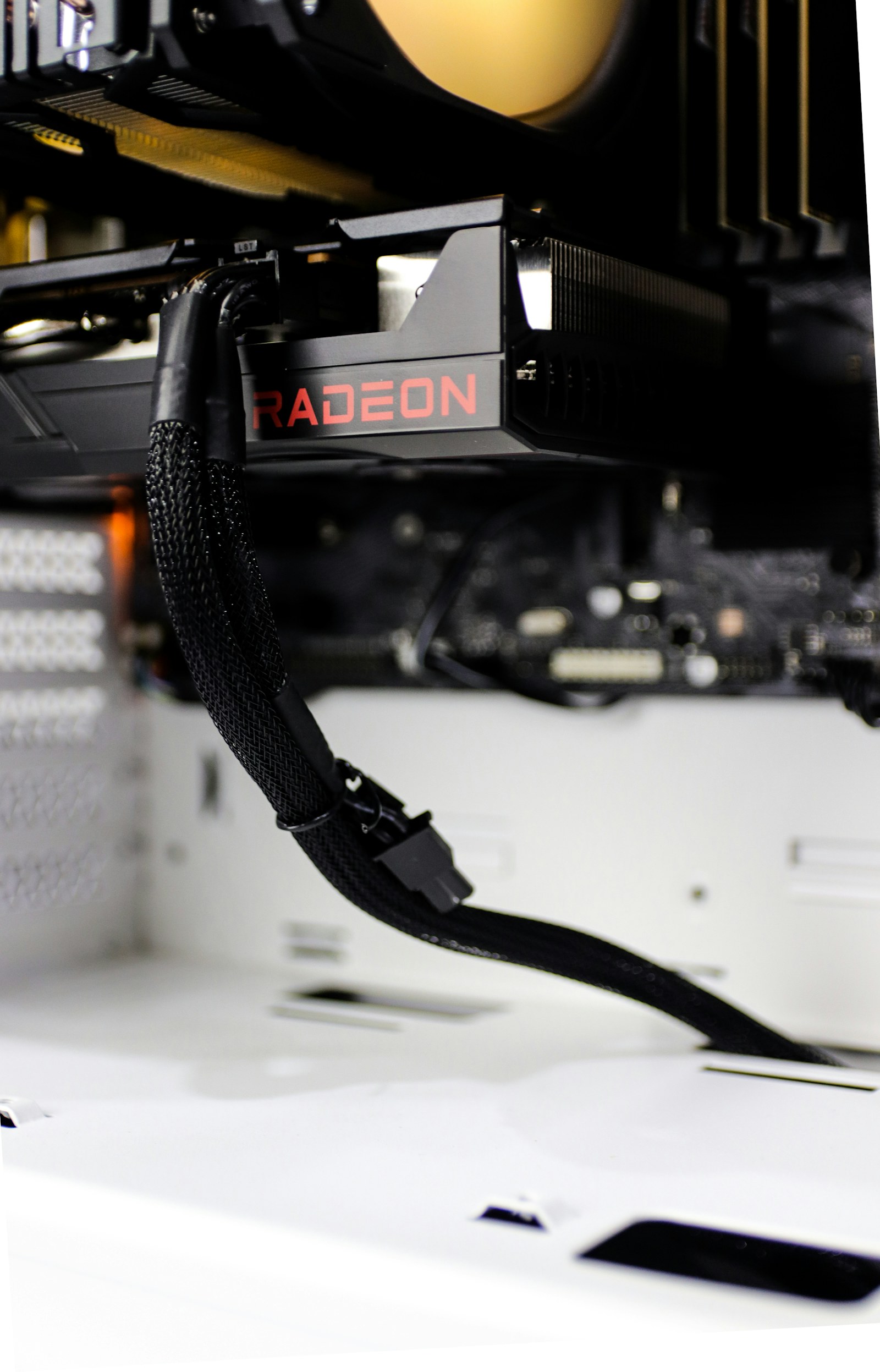

NVIDIA, ATI (now AMD), and a few others built a chip whose entire shape was wrong for general computing but exactly right for this. Lots of small dumb cores. Wide buses to specialised graphics memory. A baked-in pipeline for "transform, light, rasterise, shade". Quake ran. Half-Life ran. By 2005 the GPU was a fixture of every gaming computer.

Then a strange thing happened. Around 2007 a few researchers noticed that the matrix-and-vector math at the heart of graphics was the same math at the heart of neural networks. NVIDIA released CUDA — a programming framework that let you treat the GPU as a generic parallel-math machine, not just a graphics-pipeline. The first papers using GPUs to train neural networks appeared shortly after. By 2012 a network called AlexNet, trained on two consumer NVIDIA GPUs, won the ImageNet competition by a margin that broke the field. The modern AI era starts there.

The GPU did not get invented for AI. It was invented for video games, sat around for fifteen years, and then turned out to be exactly what AI needed.

The numbers, today

How many operations per second can each chip do? The unit is FLOPS — floating-point operations per second. A typical 2024 high-end CPU sits around 1 trillion FLOPS (1 TFLOP) using all its cores and SIMD. A high-end GPU is two orders of magnitude past that. Top-end AI accelerators add another order of magnitude.

Read those AI columns slowly. The H200 does three quadrillion four hundred trillion low-precision multiply-adds per second. The CPU it's plugged into does, generously, a thousandth of that. This is why a modern data centre training run uses thousands of GPUs and barely any CPU. The CPU shovels data; the GPU computes.

NPUs — the third chef

If a GPU is a generalised parallel-math machine, an NPU (Neural Processing Unit) is a parallel-math machine that has further specialised. NPUs only do tensor multiplications — but they do them with tiny circuits, low precision, and brutally low power.

Apple's "Neural Engine", Google's "Tensor", Qualcomm's "Hexagon" NPU, Microsoft's "NPU" in Copilot+ PCs — these all do roughly the same thing: 8–40 trillion low-precision operations per second, on milliwatts. They cannot train a model. They are extremely good at running an already-trained one. This is why your iPhone unlocks instantly via Face ID, why your photos get auto-categorised the moment they arrive, why dictation feels live: a 0.5 W NPU is doing twenty trillion ops per second locally, while you watch.

The breakdown roughly stabilises like this:

• CPU — anything that branches, anything that runs once, anything that needs to be smart. The orchestrator.
• GPU — anything that's a big matrix multiplication. Training huge models. Real-time graphics. Scientific simulation. Physics.
• NPU — running pre-trained models locally, at low power, all the time. Voice, vision, autocorrect, summarisation. The on-device AI tax.

Why this is the bridge to Phase 2

Phase 1 is now complete. You have, in your head, a working model of the chef, the kitchen, the catalogue, the cop, the streets, the road width, and the army of prep cooks. Every machine in this room — and every model running in any cloud — is some specific arrangement of those eight ingredients. Nothing about it is mysterious any more.

What's left is to actually tell the chef what to do. Phase 2 is where we stop talking about the kitchen and start writing recipes. We start with the language that has been the lingua franca of computing for fifty years — the language whose ghost is in every modern compiler, every operating system, every AI framework. The language of Bell Labs, 1972.

When somebody says "AI runs on silicon", they really mean: AI runs on a GPU plugged into a CPU sharing a bus with some RAM. Now you know what every word in that sentence means.

What's next — and welcome to Phase 2

Phase 1 is done. You have the silicon. You have the kitchen. From next week, we start writing for the chef.

Week 09 is 1972 & Bell Labs — why the language we start with, fifty years on, is C. The most influential programming language of all time, written by two people in a back office for a phone company. Phase 2 begins.
